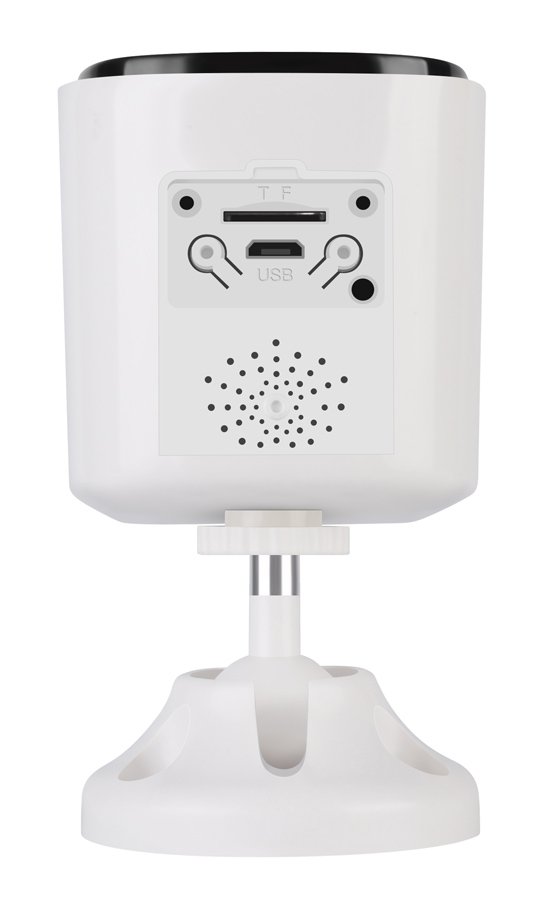

VSTARCAM smart ηλιακή κάμερα CB54-TZ

Περιγραφή

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Processor: T31ZL 1.5GHZ
Image sensor: GC2063, 2MP,1/2.9 CMOS (pixel optional, PCB compatible)
Minimum illumination: 0.8Lux/F1.4 (Color mode), 0.3Lux/F1.4 (B&W mode)
Lens: Standard lens 4mm,1G3P, IR-CUT integrated
Sensor performance: Support Automatic white balance, Automatic gain control, Automatic backlight compensation
Viewing angle: D110° diagonal
Night vision: Black and white night vision, Automatic switching of IR-CUT, 6 pcs 850nm IR LED lights, Irradiation distance: 5 ~ 10m
Compression standard: H.265 /H.264 /MJPEF/JPEG
Multi code stream: 1080p / 15fps, 360p, JPEG capture
IR control: IR turned on-- the Night vision ON; IR, ICR automatic detection; IR turned off-- the Night vision function disabled/ IR always OFF, ICR is fixed in the Day vision mode
Bit rate: CBR / VBR two rate control modes, and the output rate range is 128 ~ 4096kbps
Image adjustment: Brightness, contrast, vertical, horizontal adjustable, OSD display
Audio input: Built-in - 38dB microphone
Audio output: Built-in 8 ? 1W speaker
Audio sampling frequency / Bit width: 8KHz/16bit
Audio compression standard / Bit rate: G711A
Network protocol: TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,P2P,IPV4 etc
Wireless network: IEEE802.11b/g/n
Wireless frequency: 2.4~2.4835GHz
Wireless security encryption: 64/128-bit WEP/WPA-PSK/WPA2-PSK data encryption
Wireless connection: AP hotspot network configuration, QR code network configuration
Memory: Support T-Flash card (max supprt 128GB), Free cloud storage
Alarm detection: Support PIR human detection; Detection distance: 6m
Rated voltage: DC5V +/-5%
Power supply: Comes with 5000mAh battery power supply, 2x18650, supports external 3V, 5V solar panels
Power consumption: Sleep current 500uA, Working current: 390mA
Work environment: Working temperature: - 10 ~ 55°C, Working humidity < 90%

Περιεχόμενα συσκευασίας
Κάμερα
Ηλιακό πάνελ
Βάση τοίχου κάμερας
Βάση τοίχου πάνελ
Καλώδιο φόρτισης USB σε Micro USB
Κατσαβίδι
Βίδες & ούπα
Εγχειρίδιο χρήσης
