LONGSE NVR καταγραφικό με 4 κάμερες

Περιγραφή

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Κάμερα
-Image Sensor: GC4653 1/3" CMOS
-Resolution: 5MP
-Compression: H.265
-TV System: PAL (default)
-Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec
-S/N Ratio: </=52dB
-Scanning System: Progressive
-Video Output: Wireless network
-Reset Button: Yes
-Lens Type: 2.8mm
-Focus Length: F2.0
-Focus Control: Fixed
-Pixels: 5M Pixels
-Infrared LED: LED: 2PCS IR light & White light
-Infrared Distance: 30M
-Fill light mode: Infrared / Full color / Smart
-Main Stream 1: 2880x1620 @15fps
-Sub Stream 1: 768x432 @15fps
-Antenna: 3dBi
-WiFi: IEEE802.11b/g/n
-WiFi Range: No obstacles 400m Max
-Day/Night: Color/ B&W (IR-CUT)
-Image Config: Saturation/Brightness/Contrast/Sharpness, Mirror
-Screen rotation: Rotate 90°/180°/270°
-Intelligent detection: Human & Vehicle
-Motion Detection: Support
-Privacy Masking: 3 Rectangular Zone
-Recording Mode: NVR
-Audio: Built-in microphone
-Housing: Metal IP67
-Anti-cut Bracket: Yes
-IR Cut Filter: Yes
-Operation Temperature: -30 °C ~ +55 °C RH95% Max
-Power Source: DC12V +/-10%, 1A
-Dimension: 169.5x70x67.5(mm)
-Weight: 0.42kg

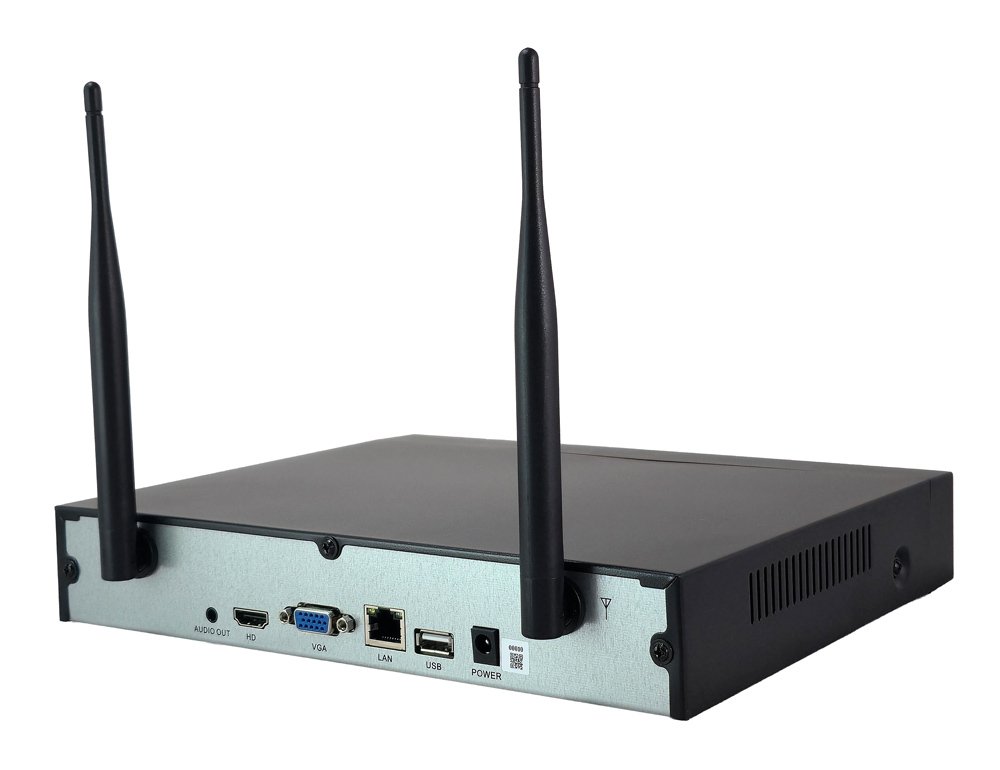

Καταγραφικό
-Main Processor: ARM Cortex A7 Processor
-Operating System: Embedded LINUX
-Video Input: 8CH (8MP/5MP/4MP/3MP/2MP/960P/720P/D1)
-Video Output: 1 VGA, 1 HD
-Audio Output: 1x 3.5mm audio interface
-Audio Bit Rate: 64kbps
-Motion Detection: 8 Channel, MD Zones: 396 (22 x 18)
-Intelligent detection: Human & Vehicle
-Trigger Events: Recording, Email, Buzzer,ScreenTip and Push notification
-HD: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/60Hz, 4K(3840x2160)/30Hz
-VGA: 1024x768/60Hz, 1280x720/60Hz, 1280x1024/60Hz, 1920x1080/60Hz
-Display Split: 1/4/8/9
-Digital Zoom: Yes
-OSD: Camera name, Time
-Video Compression: H.265
-Resolution: 8MP(3840x2160), 5MP(2880x1620), 4MP(2688x1520), 3MP(2048x1536), 1080P(1920x1080), 960P(1280x960), 720P(1280x720), D1 (720x576/720x480)
-Record Rate: 8MP @8x15fps, 5MP @8x15fps, 4MP @8x15fps, 3MP @8x15fps, 1080P @8x15fps, 960P @8x15fps, 720P @8x15fps, D1 @8x15fps
-Record Mode: Manual\Timing\Motion\Intelligent
-Local Sync Playback: 2CH 8MP @15fps, 4CH 5MP @15fps, 4CH 4MP @15fps, 4CH 3M @15fps, 4CH 1080P @15fps
-Decode Capability: 1080P @120fps
-Remote Sync Playback: Yes
-Search Mode: ALL, Channel, Manual, Timing, Motion Detection, Human, Vehicle
-Playback Functions: Play, Stop, Backward, Forward, Fast play, Slow Play, Frame forward,Audio, Editing
-Backup Mode: Network/USB2.0
-Interface: 1x RJ-45 10/100Mbps self-adaptive Ethernet interface for LAN
-Network Functions: TCP/IP, HTTP, NTP, SMTP, DHCP, DDNS, RTSP, RTCP, RTP
-Web Browser: Edge, Firefox, Chrome, Safari
-Smartphone: iPhone, Android
-WiFi: Support, WiFi Range: No Obstacles 400m Max
-Storage Interface Type: 1 SATA Hard Disk Interface (2.5"/3.5" SATA)
-Capacity: Up to 8TB capacity
-Language: Chinese, English, Russian, German, French, Spanish, Italian
-USB Interface: 2 USB 2.0 Interfaces
-Power Supply: DC12V/2A<10W (Without HDD)
-Working Environment: -10~55 °C/10~90%
-Dimension (WxDxH): 260x215x46(mm)
-Weight: 0.66kg

Περιεχόμενα συσκευασίας
-NVR καταγραφικό
-4x κάμερες
-Ενσύρματο ποντίκι
-Τροφοδοτικό καταγραφικού
-Καλώδιο SATA
-Καλώδιο δικτύου
-4x τροφοδοτικά καμερών
-4x κεραίες καμερών
-Βίδες & ούπα
-Drill templates
-Εγχειρίδιο χρήσης
