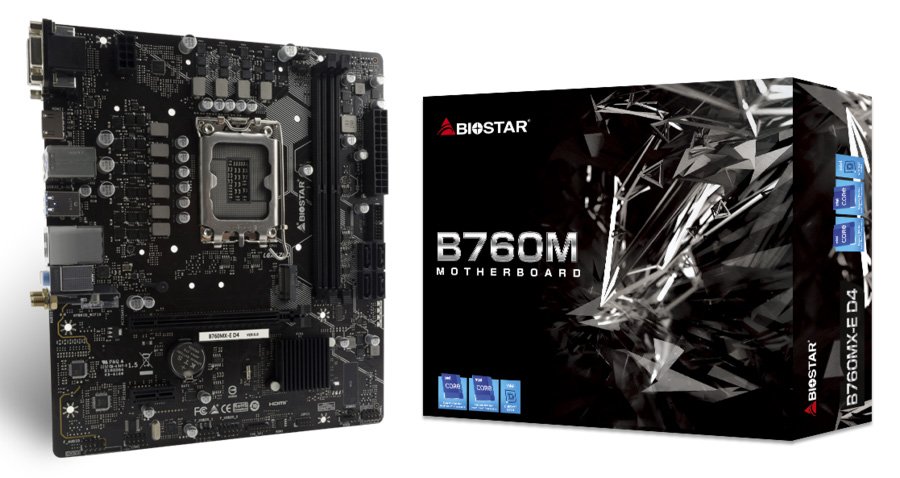

BIOSTAR μητρική B760MX-E

Περιγραφή

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Chipset: Intel B760
CPU support: 12th/13th Generation Intel Core™ i9/i7/i5/i3 processors and Intel Pentium/ Celeron processors in the LGA1700 package
Memory: 2x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory
Integrated video: DX12, HDCP
Storage: 1x M.2 socket and 4x SATA III (6Gb/s) ports
LAN: Intel i219v, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability
Audio codec: ALC897, 7.1 Channels, High Definition Audio
USB: 4x USB 3.2 (Gen1), 8x USB 2.0
Expansion slot: 1x PCIe 3.0 x1 Slot, 1x PCIe 4.0 x16 Slot
Dimension: Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L )
OS support: Supports Windows 10 (64bit) / 11(64bit)
REAR I/O:
1x WIFI Antenna Port
1x PS/2 Keyboard/ Mouse Port
1x HDMI
1x VGA+DVI Port
2x USB 3.2 (Gen1) port
4x USB 2.0 port
1x LAN port
3x Audio Jack
INTERNAL I/O:
4x SATA III Connector (6Gb/s)
1x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi
2x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1x 8-Pin Power Connector
1x 24-Pin Power Connector
1x CPU Fan Connector
1x System Fan Connector
1x Front Panel Header
1x Front Audio Header
1x Internal Stereo Speaker Header
1x Clear CMOS Header
1x COM Port Header
1x TPM Header
